P1859

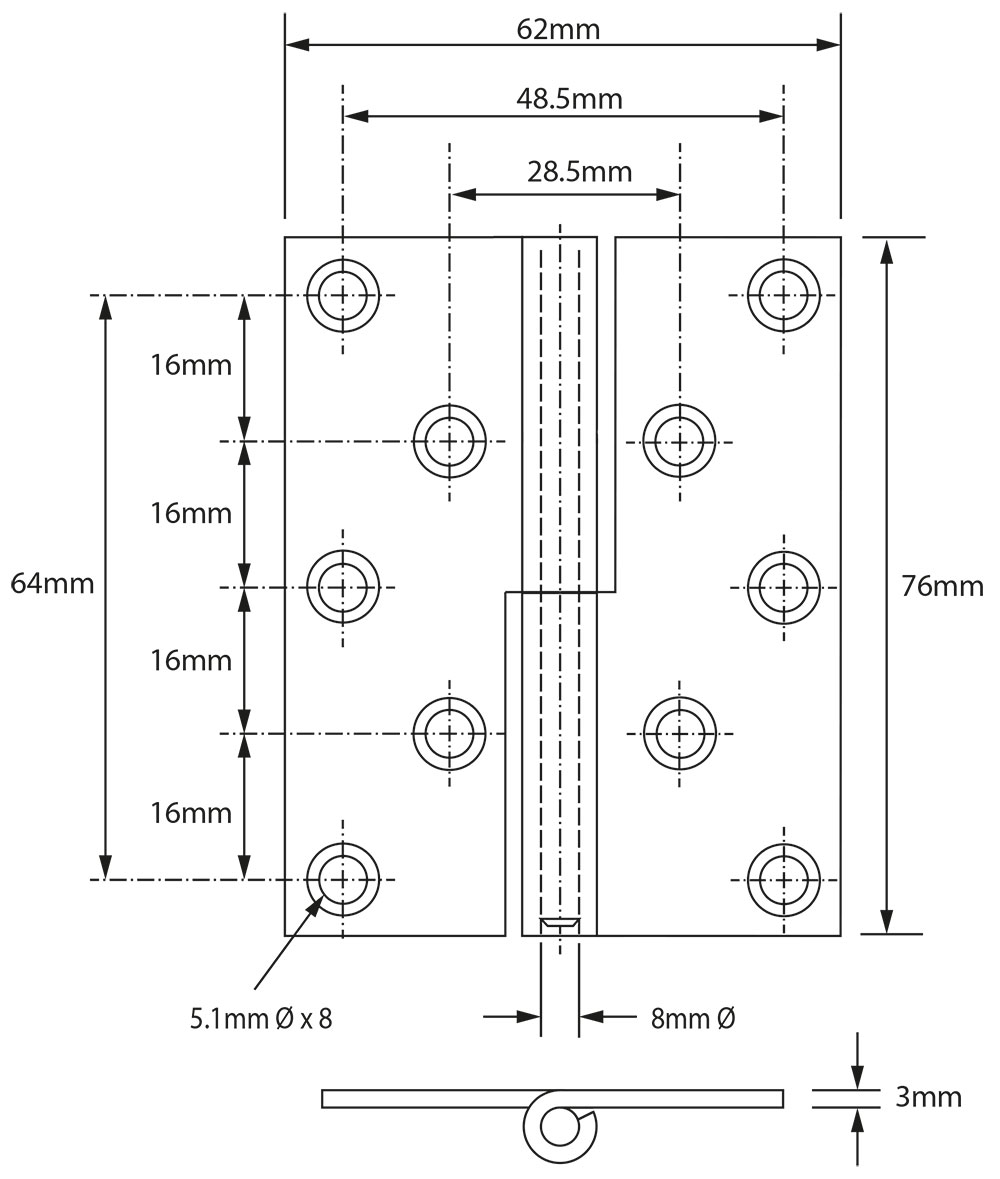

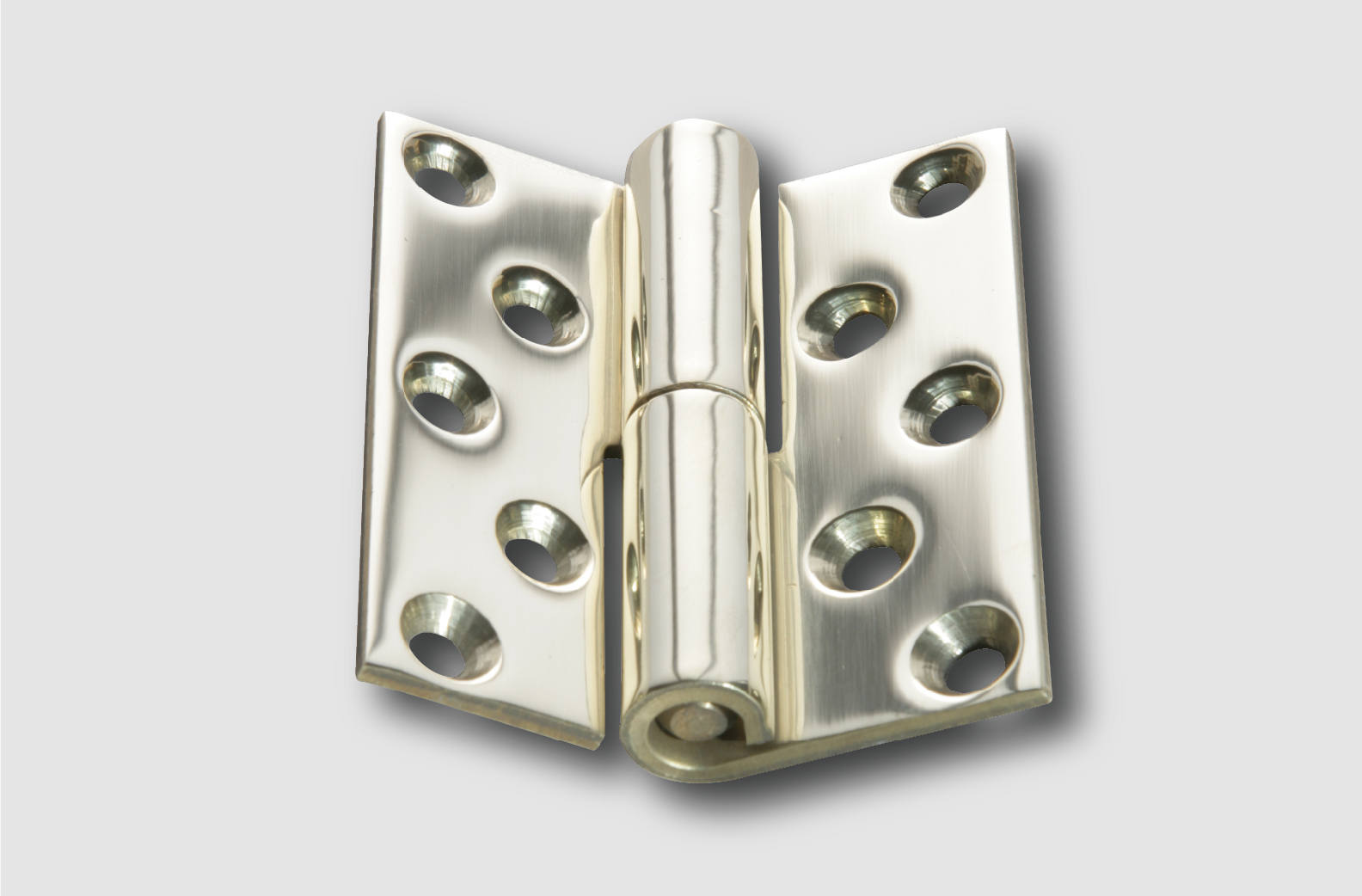

A standard style lift-off hinge, which is supplied with countersunk holes.
| |
Material | Brass |
Holes | Countersunk |
Pin | 8mm |
Length | 76mm |
Width open | 62mm |
Gauge | 3mm |
Please note, these hinges are handed. When ordering, please refer to the handing images below and specify if the hinge you need is “Hand As” or Hand Opposite.
